プロダクト細部
起源の場所: 中国深セン
ブランド名: Zento
証明: ce iso9001 rosh
モデル番号: ZT-YG02
支払及び船積みの言葉
最小注文数量: 1個
価格: $589-$890
パッケージの詳細: 詰まる木
受渡し時間: 3～5日
支払条件: L/C、D/A、D/P、T/T、ウェスタンユニオン
供給の能力: 50個 7日間

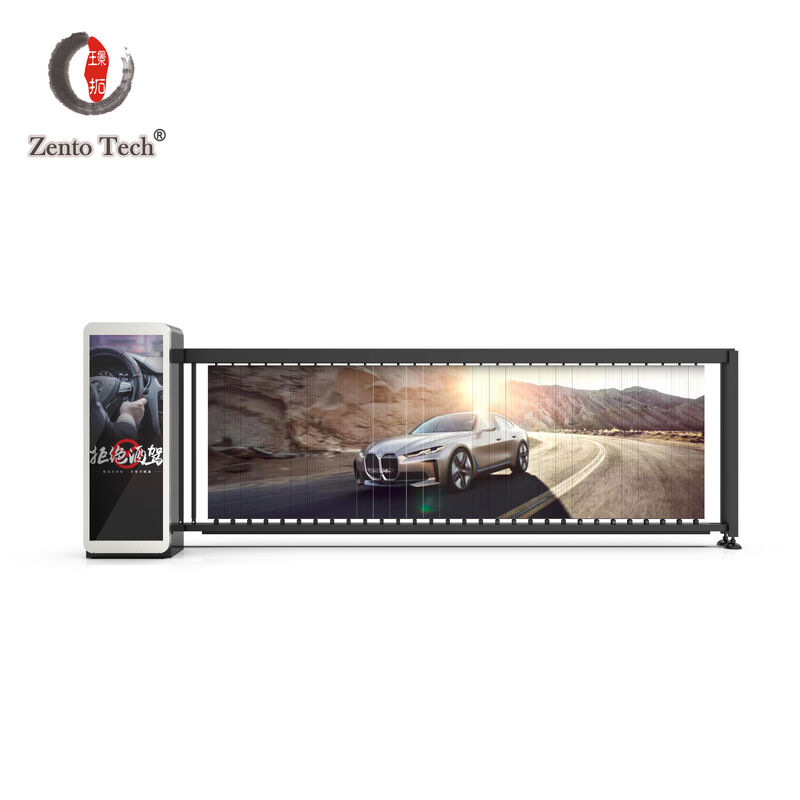

Our Advertising Boom Barrier is a dual-functional intelligent access control parking barrier that perfectly integrates vehicle traffic management and commercial advertising display. Different from traditional single-function parking boom gates, this upgraded barrier is equipped with a high-transmittance sealed advertising light box, realizing zero-cost commercial drainage for property owners and merchants.Our Advertising Boom Barrier is a dual-functional intelligent access control parking barrier that perfectly integrates vehicle traffic management and commercial advertising display. Different from traditional single-function parking boom gates, this upgraded barrier is equipped with a high-transmittance sealed advertising light box, realizing zero-cost commercial drainage for property owners and merchants.
| Item | Specification |
|---|---|
| Power Supply | AC220V±10%/50Hz；DC24V Optional |
| Motor Power | 120W–250W, Brushless DC Motor |
| Boom Length | 2m–6m(Customizable) |
| Opening/Closing Time | 1.5s–10s(Adjustable) |
| Advertising Panel | Two‑sided LED Lightbox, 920×830mm(Custom) |
| Protection Grade | IP64(Dustproof & Waterproof) |
| Working Temperature | -30℃～+70℃ |
| Material | Aluminum Alloy + Galvanized Steel |
| Control Mode | Remote Control, Push Button, RFID, ANPR, Manual |
| Safety Features | Obstacle Detection, Auto Reverse, Anti‑Smash, Wind Resistance |
Q1: Can the advertising content be updated frequently?
A1: Yes. Tool‑free panel replacement(5 mins)；support custom printing or LED digital display(remote content update).
Q2: Is it safe in heavy rain/wind?
A2: Absolutely. IP64 waterproof/dustproof；wind‑resistant design(withstand 12 级 wind)；rubber seal at boom bottom for anti‑collision.
Q3: What if power cuts off suddenly?
A3: Equipped with manual crank；easily open/close the barrier manually；optional UPS backup for continuous operation.
Q4: Can it integrate with my existing parking system?
A4: Yes. Standard RS485/WiFi interface；compatible with ANPR, RFID, ticketing systems；our team provides free integration technical support.
Q5: What’s the warranty period?
A5: 2‑year warranty for motor & control board；lifetime technical support；spare parts provided at cost after warranty.
Q6: How long is the installation & commissioning time?
A6: Standard model:2–3hrs；our engineer provides remote guidance or on‑site installation(extra fee).
